BILITI LES PRO-T 5X

Revolutionize Your Energy Independence

The BILITI LES PRO-T 5X is a state-of-the-art, all-in-one energy solution that seamlessly combines a high-efficiency MPPT solar controller, a pure sine wave DC-to-AC inverter, and a robust LiFePO4 lithium battery storage system into a single, compact cabinet. Designed for simplicity and sophistication, this system eliminates the need for multiple separate components — saving space, reducing installation complexity, and creating an efficient energy ecosystem for your home or business.

Watch video
Download Brochure

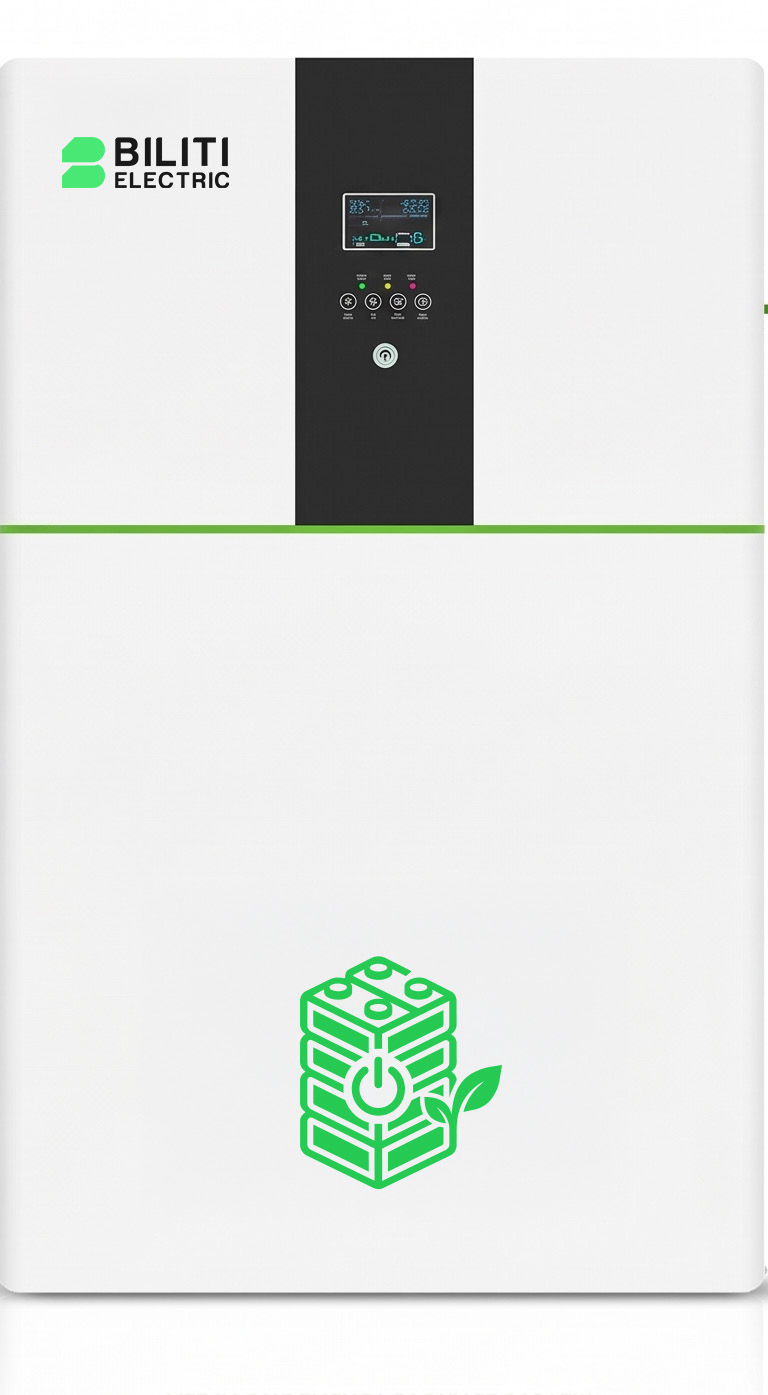

BILITI LES PRO-T 5X Solar Inverter with Lithium Battery
  • Power 5KW Rated Power
  • Efficiency 94% Peak Efficiency
  • Battery LiFePO4 Battery
  • Charging 3 Charging Modes
  • Smart Monitoring Smart Monitoring
  • IP67 Protected IP67 Protected

Ready, Set, POWER!

LES PRO-T 5X SPECIFICATION

Rated Power 5000W
Battery 51.2V 100Ah LiFePO4
Peak Efficiency 94%
Max PV Input 500VDC / 6000W
Charging Modes Solar / Grid / Generator
Operating Temp -15°C to 40°C

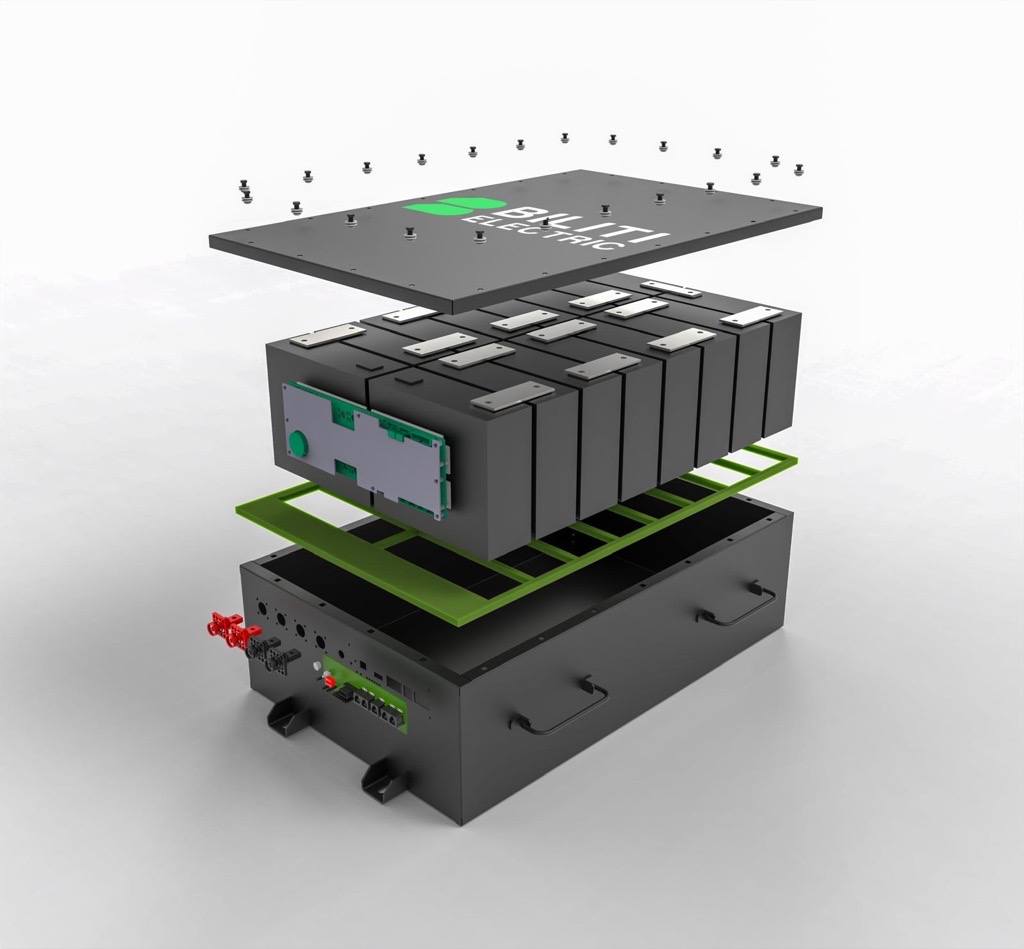

BILITI LiFePO4 Battery Pack

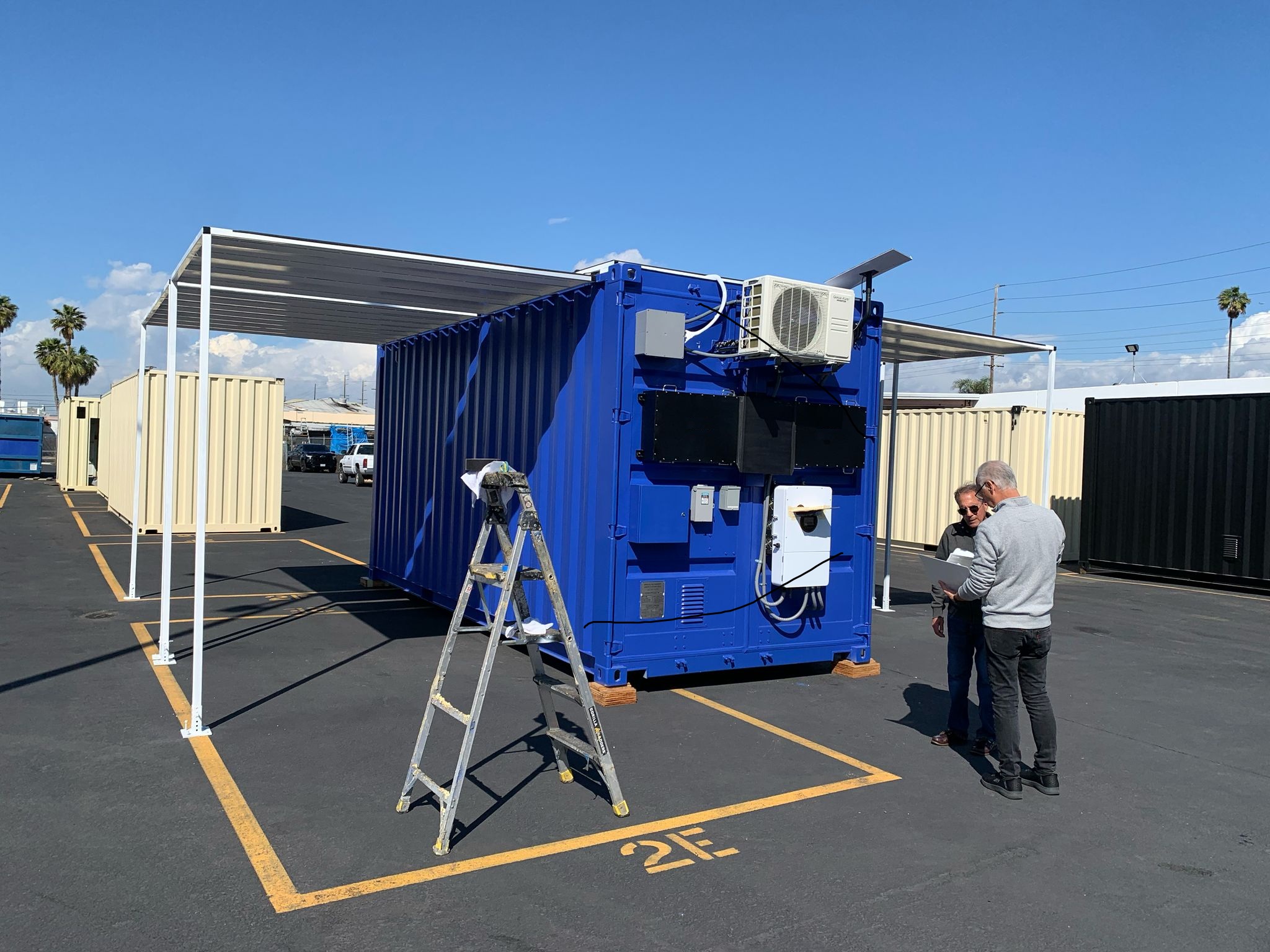

BILITI Energy Storage System installed at site

BUILT FOR THE REAL WORLD

From commercial complexes to critical infrastructure, the BILITI LES PRO-T 5X delivers reliable, off-grid energy wherever it is needed. With integrated solar canopy compatibility and modular battery expansion, it is the ideal solution for large-scale energy independence.

ALL-IN-ONE INTEGRATION

No more juggling separate solar controllers, inverters, and batteries. The LES PRO-T 5X combines an MPPT solar controller, pure sine wave inverter, and LiFePO4 battery into one compact cabinet — saving space, reducing installation complexity, and creating a seamless energy ecosystem for your home or business.

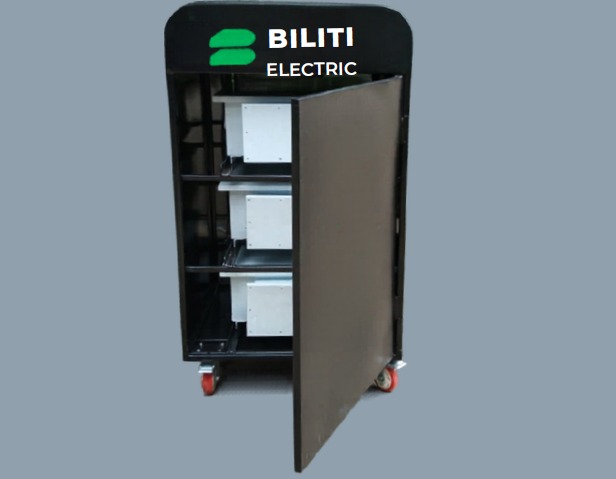

BILITI Stackable Battery Unit

Technical Specifications

Parameter Value
Power
Rated Power 5000W
Configuration Single
Battery
Standard Voltage 48VDC
Battery Type LiFePO4
Capacity 51.2V 100Ah (Rack mount, 19"/3U)
Max Charge/Discharge 100A
Cut-Off Voltage 44.8VDC / 58.4VDC
AC Input
Input Voltage 220V / 230V / 240VAC
Input Frequency 43–53Hz (50Hz), 53–63Hz (60Hz)
AC Output
Output Wave Pure Sine Wave
Conversion Efficiency 94% (peak)
Output Voltage / Frequency 220/230/240VAC ±2% / 50Hz ±1%, 60Hz ±1%
MPPT Controller
Max PV Input Voltage 500VDC
PV Array Max Power 6000W
MPPT Tracking Range 120V–450VDC
Max PV Charging Current 100A
General
Protection Battery under/overvoltage, overload, short circuit, temperature
Protection Degree IP67
Display LCD + LED
Cooling Intelligent fan control
Communication USB / RS232 / Wi-Fi / GPRS (optional)
Working Mode Mains priority / PV priority / Battery priority
Operating Temperature -15°C to 40°C
Relative Humidity 0%–95% (non-condensing)
Dimensions
Product Size (L×W×H) 525 × 180 × 900 mm
Package Size (L×W×H) 535 × 190 × 910 mm

Applications

Powering homes, businesses, and industrial environments

Residential

Energy independence for homes, reduce electricity bills, and reliable backup power during outages.

Commercial

Reduce operational costs for businesses and ensure reliable power continuity for commercial operations.

Industrial

Scalable energy storage solutions for industrial environments requiring robust, uninterrupted power.
